Low temperature evaporators play a crucial role in gently concentrating heat‑sensitive products, from juices to biotech fluids. Yet their intricate vacuum and heat‑exchange systems can sometimes misbehave. This guide highlights typical faults you may encounter and offers fast, practical fixes to keep your low temperature evaporator running smoothly.

1. Insufficient Vacuum Level

Symptom: Evaporation rate drops; boiling point remains high.
Causes:

  • Leaks in vacuum seals or piping
  • Malfunctioning vacuum pump
  • Blocked vapor line or condenser

Quick Fix:

  1. Inspect and tighten all flange and gasket connections.
  2. Check vacuum pump oil level and replace if contaminated.
  3. Clear any obstructions in vapor line; clean condenser coils.

2. Inconsistent Film Distribution

Symptom: Uneven concentration, localized fouling.
Causes:

  • Worn or misaligned wiper blades (in wiped‑film units)
  • Maladjusted feed nozzle or distributor
  • Viscosity changes outside design range

Quick Fix:

  1. Realign or replace worn wipers.
  2. Adjust feed flow rate and nozzle height per OEM specs.
  3. Pre‑heat or dilute feed to stay within recommended viscosity.

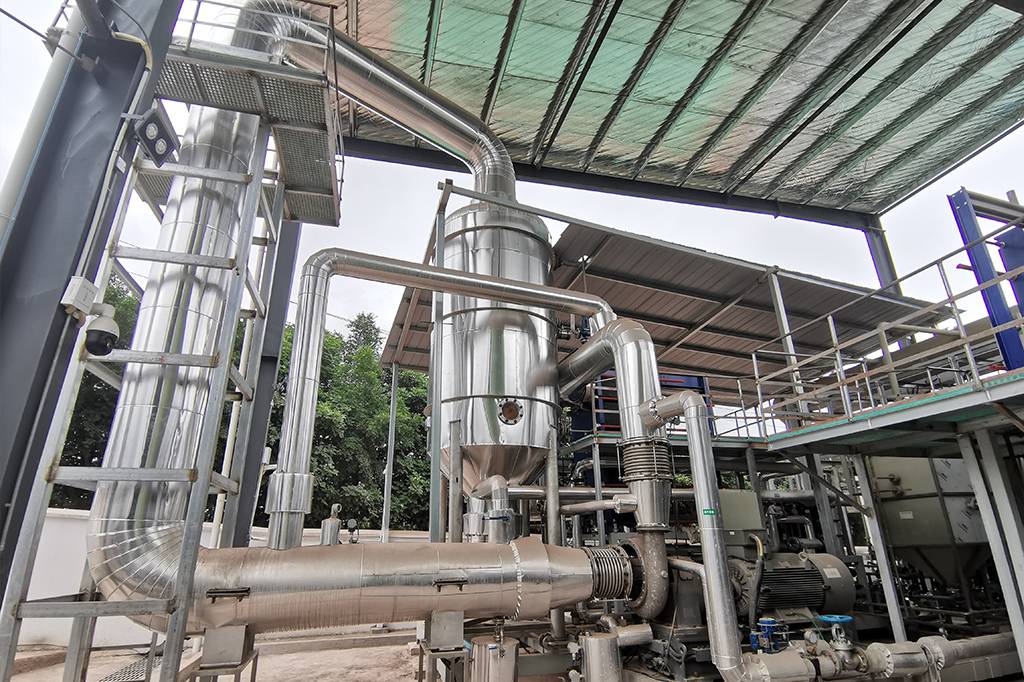

Low temperature evaporators

3. Excessive Fouling or Scaling

Symptom: Heat transfer efficiency falls; pressure drop increases.
Causes:

  • Hard‑water salts precipitating on tubes
  • Sticky organics or protein residues
  • Infrequent CIP cycles

Quick Fix:

  1. Initiate an immediate CIP with a mild acid wash (1% nitric or citric acid).
  2. Add anti‑scaling additive to feed if permitted.
  3. Increase CIP frequency to weekly for heavy fouling feeds.

4. Erratic Temperature Control

Symptom: Inlet or wall temperatures fluctuate, risking product quality.
Causes:

  • Faulty temperature sensor or transmitter
  • Inconsistent steam pressure
  • Blocked heat‑transfer surface

Quick Fix:

  1. Calibrate or replace the problematic sensor.
  2. Stabilize steam supply with a pressure regulator.
  3. Clean or descale heat‑exchange surfaces.

5. Noisy Operation or Vibration

Symptom: Unusual sounds; excessive machine shaking.
Causes:

  • Loose mounting bolts or supports
  • Imbalanced rotating components (pumps or blades)
  • Cavitation in circulation pumps

Quick Fix:

  1. Tighten all structural fasteners.
  2. Balance or replace worn impellers and wiper assemblies.
  3. Ensure adequate NPSH (Net Positive Suction Head) for pumps.

6. Excess Condensate Carry‑over

Symptom: Wet vapor coming off; downstream equipment fouling.
Causes:

  • Overfilled separator drum
  • Faulty demister pads or mist eliminator
  • Too high feed rate

Quick Fix:

  1. Adjust level control to reduce liquid in vapor line.
  2. Replace or clean demister elements.
  3. Slow down feed pump until carry‑over ceases.

Conclusion

Routine checks and proactive maintenance go a long way in preventing these common issues with your low temperature evaporator. By following this quick troubleshooting guide, you can minimize downtime, preserve product quality, and extend equipment lifespan.
